Sugar Grinding Plant

Name: Sugar Grinding Plant
Brand: SANA INDUSTRIES
Price: 250000 INR
Availability: InStock

Price 250000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Sugar Grinding Plant Specification

Noise Level
Low

Phase
Three Phase

Power Source
Electric

Speed Mode
Variable Speed

Frequency
50 Hz

Feeding System
Automatic Hopper

Features
Easy To Operate, Low Power Consumption, Hygienic Grinding, Dust Collector Attached

Function Type
Grinding/Milling

Automation Grade
Automatic

Heating Method
No Heating Required

Operating Temperature
Ambient

Product Type
Sugar Grinding Plant

General Use
Industrial Sugar Grinding

Material
Mild Steel/SS304 Contact Parts

Type
Grinding Plant

Weight (kg)
Approx. 1800 kg

Product Shape
Rectangular Modular Plant

Computerized
Yes

Automatic
Yes

Control System
PLC Control Panel

Installation Type
Field Installation

Voltage
415 V

Dimension (L*W*H)
3800 x 1500 x 2100 mm (approx.)

Raw Material
Sugar (Crystal Sugar/Granules)

Feature
High Efficiency, Dust Free Operation, Continuous Grinding

Color
Blue/Grey

About Sugar Grinding Plant

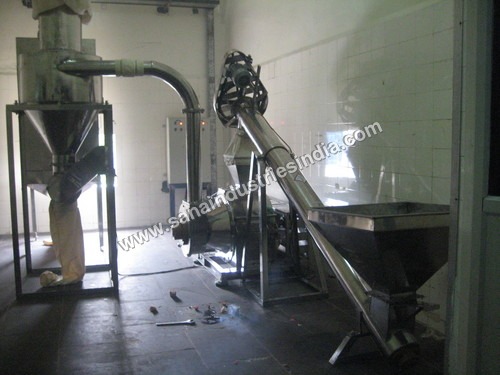

Owing to our vast experience in the domain, our firm has gained proficiency in offering an excellent quality range of Sugar Grinding Plant. This plant is used for grinding sugar granules into powder up to 80 to 150 mesh sizes. Fabricated using the finest grade raw materials in compliance with the set industry standards, this plant is available in various specifications as per the specific needs of our clients. Known for robust construction, easy installation and less power consumption, clients can avail this Sugar Grinding Plant from us at very affordable rates.

Specifications:

Completely made in stainless steel SS 304
First screw conveyor raw sugar carry to grinder, from sugar pulveriser to cyclone fix with rotary valves
For smooth bagging and air outlet goes to a dust collector
Range of capacity from 50 kgs per hour to 500 kg per hour

Precision Sugar Grinding for Industrial Needs

Our Sugar Grinding Plant delivers fine, uniform sugar powder with adjustable fineness from 40 to 120 mesh, ensuring the ideal particle size for bakery, confectionery, and pharmaceutical applications. The systems automated features, continuous operation, and robust build provide high efficiency and consistent quality.

Dust-Free and Hygienic Operation

The integrated high-duty dust collector system ensures a clean, safe workspace by controlling airborne particles. With easy manual or auto cleaning and stainless steel contact parts, the plant prioritizes hygiene standards crucial for food and pharmaceutical industries, all while operating with low noise and energy consumption.

Safe and Intelligent Control

The plants PLC control panel, overload protection, and emergency stop systems ensure safe, reliable processing. The computerized operation mode not only enhances precision but also minimizes human error, making the production process smoother, faster, and more secure for operators.

FAQs of Sugar Grinding Plant:

Q: How does the Sugar Grinding Plant achieve adjustable output fineness?

A: The plant is equipped with advanced grinding mechanisms and a variable speed feeding system, enabling users to adjust output fineness between 40 and 120 mesh. This flexibility ensures the finest texture suitable for various industrial requirements.

Q: What safety features are included in the Sugar Grinding Plant?

A: For enhanced user safety, the plant features overload protection, an emergency stop, and a fully enclosed grinding chamber. These mechanisms help protect both the machine and operators from accidents or equipment damage during operation.

Q: When should the dust collector system be cleaned, and how is it maintained?

A: Cleaning intervals depend on production volume, but the dust collector system is designed for easy manual or automatic cleaning. Regular maintenance ensures continuous dust-free operation and optimal system performance.

Q: Where can this Sugar Grinding Plant be installed?

A: The plant is suitable for field installation in industrial settings such as bakeries, confectionery production lines, and pharmaceutical facilities, ensuring flexibility based on your workspace requirements.

Q: What is the process for grinding sugar in this plant?

A: Raw crystal or granulated sugar is fed automatically via a hopper. The continuous grinding chamber processes the sugar, separating fine powder through a cyclone separator outlet, resulting in consistent, high-quality output.

Q: Who benefits most from using this Sugar Grinding Plant?

A: Industrial processors, including manufacturers in the baking, confectionery, and pharmaceutical sectors, benefit from efficient, hygienic, dust-free grinding, reduced manual intervention, and reliable after-sales support. The long service life and low power consumption add further value.
